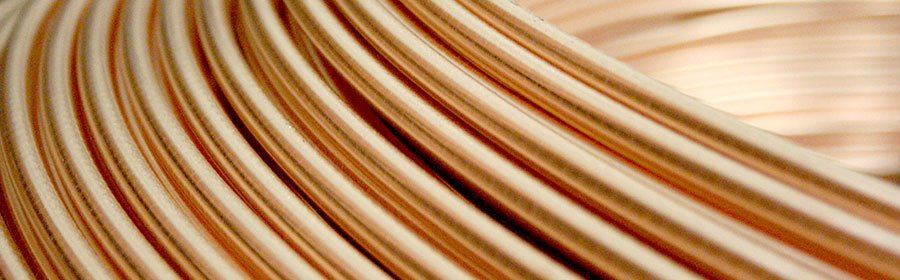

Copper Rods

Type Diameter Ultimate Tensile strength Ultimate Tensile strength Ultimate Tensile strength Elongation Resistivity Conductivity
OFHC 8.0 mm 24.64 Ksi 170 MPa (N/mm2) 17.33 Kg/mm2 30% 0.0172410 Ohm.mm/m 100 % IACS

OFHC: Oxygen Free High Conductivity (Up Casting Process), comply with ASTM B-49 and ASTM B-170 Other standards are available upon customer's request



CHEMICAL COMPOSITION (In ppm)
Te Se Bi Sb As Sn Pb Fe Ni Zn Mn P S Ag O2 Cu % Wt
2 3 1 4 5 5 5 10 10 1 0.5 3 15 25 5 99.990



PACKING
MATERIALS DIAMETER
(mm)
COIL WEIGHT
(Kgs)
COIL
Type
DIMENSION
ID
DIMENSION
OD
DIMENSION
H
IDENTIFICATION
COPPER 8mm 2000 - 3000 Loose coil 700 mm 1500 mm 600 mm

Note : - Other type of Packaging will followed as per customer request
