Aluminium Cables

Medium Voltage Power Cables
Home Products Medium Voltage Power Cables Aluminium Cables

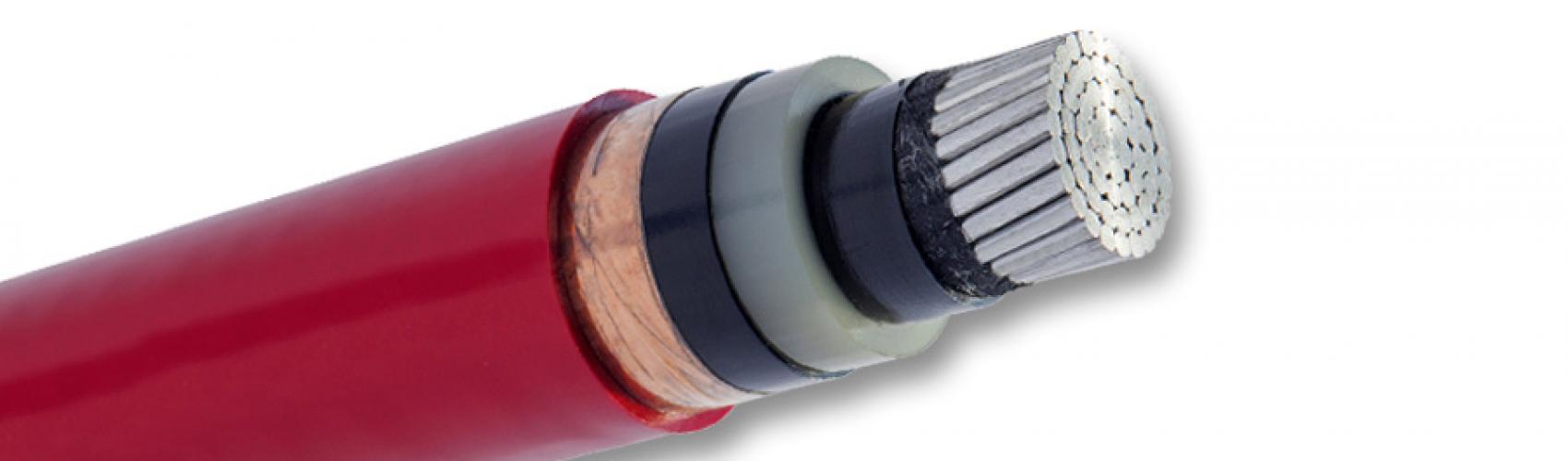

Aluminium Cables

Rated Voltage 3.6/6 - 18/30 kV
  XLPE Insulation
PVC Sheath
XLPE Insulation
PE Sheath
Cross Section
Twisted Cables 2-4 cores NFA2XSY NFA2XS2Y up to 18/30 kV: 35-300
2-3 cores + steel messenger NFA2XSY-T NFA2XSY-T up to 18/30 kV: (50-240)+95
Single Core + copper tape screen NA2XSY NA2XS2Y 3.6/6 kV:25-800
6/10 kV: 25-800
8.7/15 kV: 25-800
12/20 kV: 35-800
18/30 kV: 50-800
+ copperwire screen NA2XCY NA2XC2Y 3.6/6 kV:25-800
6/10 kV: 25-800
8.7/15 kV: 25-800
12/20 kV: 35-800
18/30 kV: 50-800
+ aluminium tape armor NA2XSB(AL)Y NA2XSB(AL)2Y 3.6/6 kV:25-800
6/10 kV: 25-800
8.7/15 kV: 25-800
12/20 kV: 35-800
18/30 kV: 50-800
+ aluminium wire armor NA2XSR(AL)Y NA2XSR(AL)2Y 3.6/6 kV:25-800
6/10 kV: 25-800
8.7/15 kV: 25-800
12/20 kV: 35-800
18/30 kV: 50-800
Three Cores with individual copper tape screen NA2XSEY NA2XSE2Y 3.6/6 kV:25-300
6/10 kV: 25-300
8.7/15 kV: 25-300
12/20 kV: 35-300
18/30 kV: 50-300
+ steel round wire armor NA2XSERY NA2XSER2Y 3.6/6 kV:25-300
6/10 kV: 25-300
8.7/15 kV: 25-300
12/20 kV: 35-300
18/30 kV: 50-300
+ steel flat wire armor NA2XSEFGbY NA2XSEFGb2Y 3.6/6 kV:25-300
6/10 kV: 25-300
8.7/15 kV: 25-300
12/20 kV: 35-300
18/30 kV: 50-300
+ double steel tape armor NA2XSEBY NA2XSEB2Y 3.6/6 kV:25-300
6/10 kV: 25-300
8.7/15 kV: 25-300
12/20 kV: 35-300
18/30 kV: 50-300
